The Vaillant gas boiler is a product of the German company Vaillant, which specializes in the production of heating equipment. This is the ancestor of gas appliances and a recognized leader in the world market. Today, the company produces wall-mounted and floor-standing boilers, which are rarely talked about badly – consumers note their cost-effectiveness and high build quality.
About Us
The brand is part of the giant concern Vaillant Group. It sells about three million units annually. The company’s annual turnover is 2 billion euros. The history of Vaillant dates back to 1874. The company got its name in honor of the founder, Johan Vaillant. The company is the leader in the number of wall-mounted boilers sold. It, unlike its competitors, offers equipment that works with renewable energies. Today, the brand owns 27% of the global market for wall-mounted heaters. The European company sells its products in almost all parts of the world. The brand, despite the narrow focus of production, has colossal research and development resources.
What are they like?
According to the installation method, boilers are distinguished:
- Wall. Small size and weight. Do not require a separate room. Stylish design – look great in the kitchen. The described brand offers a large selection of hinged models.
- Floor. More bulky. More powerful than wall-mounted counterparts. Suitable for heating a large house. There are only three floor models – AtmoVIT (16-000 W), AtmoCRAFT (56-000 W) AtmoVIT Exclisuv (up to 65 W). Made of cast iron – this prolongs their service life. Air intake – by means of fans. You can connect a capacitive boiler. The latest modifications of the floor series are equipped with two burners, one maintains a constant temperature of the coolant, the second is activated if it is necessary to increase the heating intensity.
By the number of circuits:
- Single-circuit. They are for heating purposes only. “VU” marking. It is possible to connect a boiler.
- Double-circuit. These, in addition to heating the house, simultaneously heat water for domestic needs. Marking “VUW”. The efficiency of such devices reaches 93%.
According to the method of removal of combustion products:
- Traditional chimney. Models with an open firebox are called atmospheric. Their marking is AtmoTEC.
- Coaxial chimney. Closed furnace. Marking turbocharged versions – TurboTEC.
Vaillant gas heaters also differ in power and configuration. The manufacturer produces equipment with four capacities – 12, 24, 28, 36 kW.
The marking contains a lot of useful information. For example, the Vaillant VU turboTec 362/5-5 marking means – one “VU” circuit, turbocharged – turboTec, 36 W, 000 – smoke is forced out, 2 – the fifth generation.
The lineup
The mounted type of equipment remains the most popular option, so the German manufacturer offers a wide range of such devices. Products for Russia and Eastern Europe are assembled in Slovakia – the company recently launched its production here. Boilers assembled in Slovakia are marked with the “Int” particle. At factories located in Germany, only condensing type modifications are assembled – Vaillant ecoTEC plus.
Depending on the type of ventilation, wall-mounted devices are distinguished:
- AtmoTEC – natural air circulation. 3 versions:
– Pro VUW – dual-circuit. Power 24 000 W. They are considered budget.
– Plus VUW – 20 -28 kW.
– Plus VU – single-circuit. At 24 and 000 watts.
- Allant TurboTEC – fan air supply.
There are 3 main series of 2-circuit VUW boilers:
- TEC Plus;
- Turbo FIT;
- TEC Pro.
The Plus series differs from the Pro series in the presence of a “quick start” – thanks to this function, it is possible to maintain a constant temperature in the DHW heat exchanger.
The latest models are equipped with “ATMO GUARD” – a security system based on two temperature sensors.
Advantages
It is convenient to consider the advantages of Vaillant heating equipment using the example of one model – turboTEC pro VUW INT. This is the most requested modification. It has two circuits and forced venting of gases. Advantages:
- The modulating burner is a savings factor.
- Power regulation 9 600 -24 000 W. Hot water is enough for 2 points of water intake.
- Expansion tank – 6l. You can arrange 2 circuits for two heating systems.
- Closed furnace.
Efficiency-93%.
- The copper heat exchanger has a “Suplar” coating that increases its durability.
- A flow system is used – reduces deposits.
- There is a self-diagnosis.
- Possibility of regulation of speed of the pump. True, the adjustment is carried out mechanically.
Disadvantages:
- High prices. German quality in this case is estimated at 40-000 rubles.
- Energy dependence. To ensure the uninterrupted operation of the equipment, you have to connect a UPS – an uninterruptible power supply, a battery or a generator.
- Noise during operation.

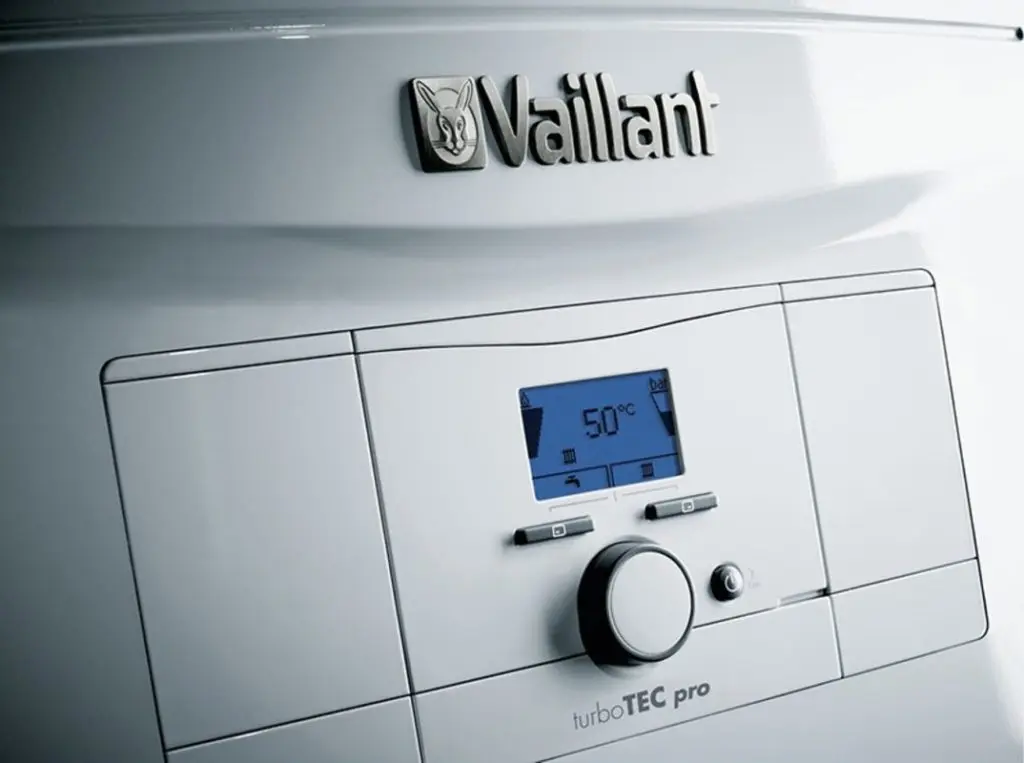

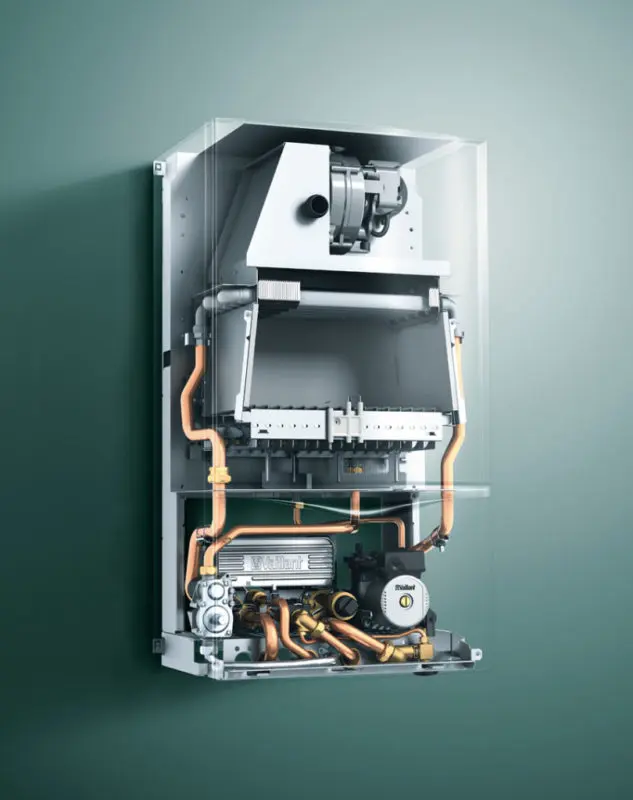

TurboTec Pro device
Double-circuit devices are equipped with two heat exchangers. The first is made of copper – it heats the coolant, the second is made of stainless steel – for heating running water. The copper heat exchanger has a large number of plates.

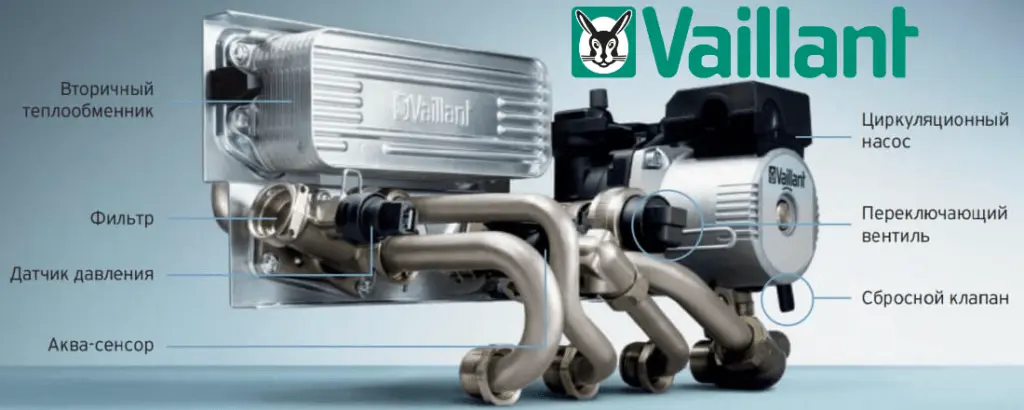

The gas burner modulates the flame within 40-100% of power. There is a built-in hydraulic unit – a secondary heat exchanger, a security system, a circulation pump, as well as a variety of sensors are installed there.
The main competitors of the brand are German Viessmann boilers. Vailant has an undeniable advantage – the water-gas elements are made of high-quality copper, while the competitors are made of composite material.
The device saves gas and electricity. Due to the use of low-voltage equipment, less electricity is consumed.
Models overview
TurboTEC plus VU 122/5-5
The simplest single-circuit model of the Turbo line. Wall execution. With a closed combustion chamber, as it should be for tubed devices. Powers vary between 12-36 kW (in 4 kW increments). Simple maintenance – the owner of the equipment can handle it himself. True, for this he will need instructions – to familiarize himself with the device device and its maintenance options. Design Features Specifications:
- Efficiency – 91%
- Power consumption 145 W.
- Heats up to 120 sq.m.
- It weighs 34 kg.
- The cost is 45 rubles.
- Heating capacity (min / max) – 6 400/12 000 W.
- Auto ignition.
- Weight – 34 kg.

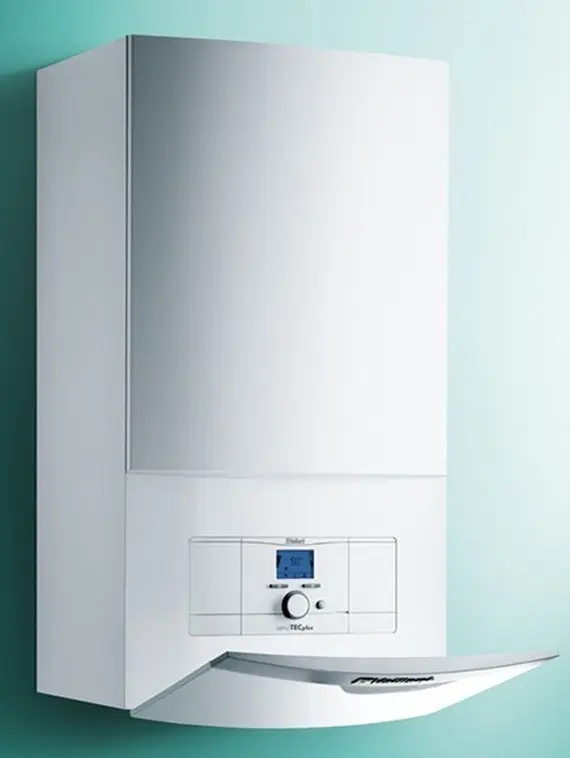

AtmoTEC plus VUW/5-5
Wall model for autonomous heating systems, Design similarity and technical characteristics:
- Two contours. Plate heat exchanger.
- Protective systems. Electronic ignition.
- Electronic control. Displaying information on the display.
- Heating capacity (min / max) – 9/24 kW. The manufacturer offers models for 28, 24 and 20 kW. Open firebox Gas outlet is natural.
- The cost is 63-000 rubles.
- Heat output – 9/000 W.
- Volatile.
- Auto ignition.
AtmoTEC pro VUW240/5-3
This range has been produced since 2015, so the latest technologies and innovative ideas were used here. Wall execution. Two contours. Natural chimney. Built-in harness. Electric ignition. Security systems. The primary heat exchanger is made of copper, for hot water supply – steel. Some specifications:
- Heating capacity and 24 W will be enough to heat a house up to 000 sq.m.
- The capacity of the DHW circuit is 11 l/min at a temperature of 30°C.
- Fuel consumption – 2,4 cubic meters / h.
- Weight 28 kg.
A complete analogue of the atmospheric boiler described above is turboTEC pro VUW240 / 5-3. This is a turbocharged version – combustion products are forced out.
EcoTEC pro VUW INT 286/5-3
EcoTEC pro series equipment is highly environmentally friendly. This is a wall-mounted 2-circuit condensing apparatus. The series is represented by capacities of 24,28, 34 kW. A high-performance DHW circuit is used. There is all the necessary piping – an expansion tank, a safety group, a circulation pump. Simple operation and simple operation are the hallmarks of condensing boilers. Sophisticated, knowledge-intensive technologies help to achieve this simplicity. Characteristics of VUW INT 286/5-3:
- 24 kW.
- Efficiency – 107%
- Weight 35 kg.
- Estimated price – 80 rubles.
- Turbocharged.
- Heats an area up to 192 sq.m.
- The limiting pressure in the heating / hot water circuit is 3/10 bar.
There is a display and backlit panel. Power adjustment – 28-100%. There is a summer mode of operation – only on hot water supply. All components are made in Germany. According to the manufacturer, such devices can save up to 25% of gas compared to convection-type counterparts.

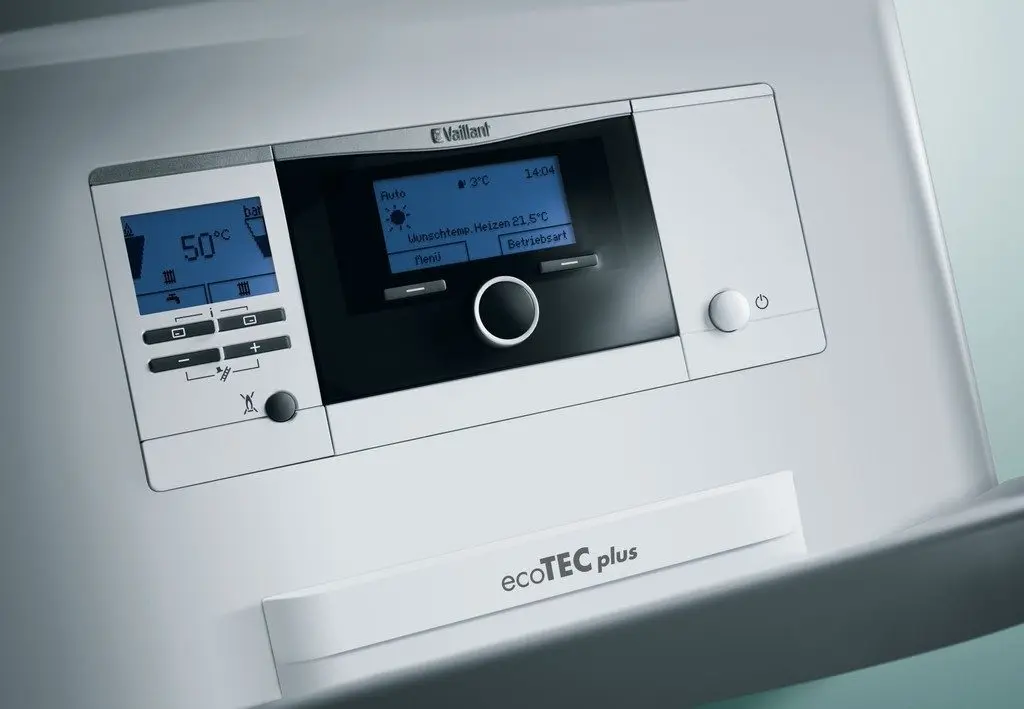

EcoTEC plus VUW 246-346/5-5
Economical equipment with easy control. Fast water heating. Increased environmental friendliness – less concentration of harmful substances in emissions. Informative control unit – on the display, in addition to error codes, their decoding is also displayed. The EcoTEC plus series is represented by three capacities – 24, 30, 34 kW.
- Heat output 24 kW.
- Efficiency – 108%
- Weight 35 kg.
- Estimated price – 98 rubles.
- Turbocharged.
- Heats an area up to 192 sq.m.
- The limiting pressure in the heating / hot water circuit is 3/10 bar.
Such devices are suitable for heating any housing – houses or apartments. Do not need frequent maintenance.
Price range
German gas equipment is an example of quality, and the price corresponds to it. Boilers of this class cost at least 45 rubles. And these are the most low-power versions, more powerful ones are twice as expensive. How much a boiler costs depends on several factors:
- Burner type.
- Smoke extraction method.
- The level of automation and configuration.
- Power.
Installation of Vailant devices allows you to save 30-40% of gas, so it will fully pay off in 2-3 heating seasons.
Operation and maintenance
Vaillant devices are reliable and unpretentious, they only need to be properly connected and configured – then in the future the role of a person in their work will be minimized. The package comes with a passport and instructions, which shows the connection diagram and device device.
Analyzing breakdowns, the manufacturer adjusts the design and management. Most of the possible problems are discussed in the instructions, it also indicates how to fix them. 80% of breakdowns are eliminated independently – without the intervention of specialists.
Special features
Installation of gas devices must comply with the instructions of the manufacturer and SNiP. Room requirements:
- The connection room must be separated by a door from the living rooms.
- The dimensions of the room depend on the type of firebox. For turbocharged versions, the minimum area is 8 square meters. m. Appliances with a closed firebox can be built into furniture.
- AtmoTEC absorb air from the room – ventilation must be installed and triple air replacement is provided. TurboTEC take air from the street, the requirements for them are less stringent.
- To extend the operation, put a filtration system.
Installation, configuration and first start-up is the task of specialists. The controller takes care of the work. Before starting the device, a specialist, using special software, checks the operating parameters.
Reviews
TurboTEC Pro VUW 242/3-3: Konstantin E., Engels
Bought 4 years ago for 35 rubles. Now it’s almost double the price. During the operation appreciated all the pros and cons. I’ll start with the pros – he doesn’t need a boiler room, hangs in the kitchen, doesn’t bother anyone. For heating and hot water – separate valves that can regulate the temperature. There is a screen on which the error code is lit – a hint about the problem. There are also disadvantages. He needs electricity for ignition – if it is turned off, you will be left without heat and hot water. There was also a breakdown, and after the first use, the valve broke, which increases the pressure.
Atmo TEC pro VUW 240/3-3: Marat Zh., Serpukhov
We chose wall-mounted – because it is compact, and double-circuit – because hot water is needed. The equipment is expensive, but it is easy to use – the temperature of heating and water is regulated separately – by valves. There are practically no problems. It only reacts to the kitchen hood – if it works for too long, it turns off. And it shows the error code – F36. The problem is exhaust gases. Have to restart. Another plus is silent operation. Connected to underfloor heating.
Vaillant equipment deservedly occupies a leading position in the ranking of demand, quality and sales volume – these are truly reliable and economical devices. Their only drawback is the high cost, both of the boiler itself and its spare parts, repairs, and maintenance. If problems occur, they are most often associated with improper installation, configuration or operation.
